AWS Series 520nm Solid State Laser For Holographic Detection

Name: AWS Series 520nm Solid State Laser For Holographic Detection
Brand: CRYLINK
Price: 1 USD

China AWS Series 520nm Solid State Laser For Holographic Detection factory

Brand Name : CRYLINK

Model Number : 520nm Accurate Wavelength Laser System of AWS Series

Certification : ISO9001

MOQ : 1

Price : custom

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

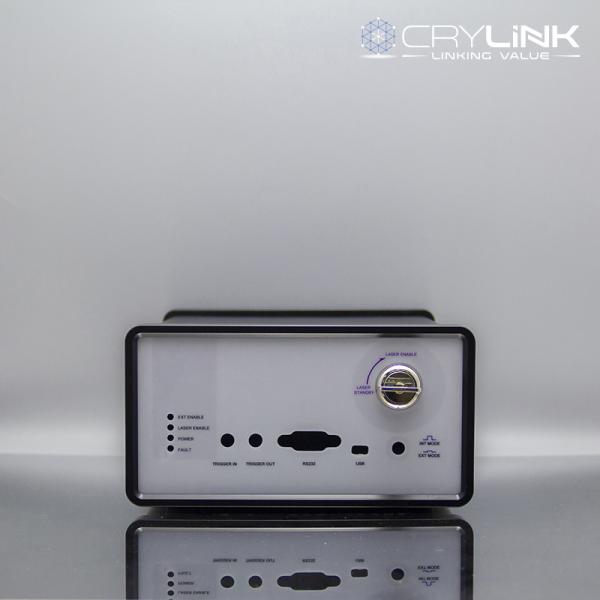

520nm Accurate Wavelength Laser System of AWS Series

Our company has specially researched 520nm single-mode pigtail semiconductor light source for optical experiment and particle size measurement application, which has passed industrial design and batch production. The product has the advantages of small structure, stable power, convenient operation, etc., and meets the teaching and research and development needs of universities and scientific research institutions for red and green lasers.(Download PDF)

Model and Parameter

Model		CL520-SIF(FP)-2mW-AWS001
Optical Parameter	Central Wavelength (nm)	520
	Wavelength Tolerance (nm)	±6
	Output Power (mW)	2
	Line Width (nm)	1
	Power Stability	±1.5% @8H
System Parameter	Power Adjustment Range	0～100%
	Preheat Time (Min)	15
	Output Method	FC/PC
	Adapted Fiber	2.5µm,0.14NA
	Power Input	100-240VAC, 50/60Hz
	System Power Consumption (W)	<2
	Storage Humidity (RH)	0~80%
	Storage Temperature (℃)	-10~60
	Operating Temperature (℃)	10~35
	System Weight (Kg)	2
	Laser Power Size (mm)	110×58×173

Feature

Small and compact system
Includes slow-start, short-circuit protection

Application

Holographic detection
Granularity measurement
Laser guidance
Optical experiment
